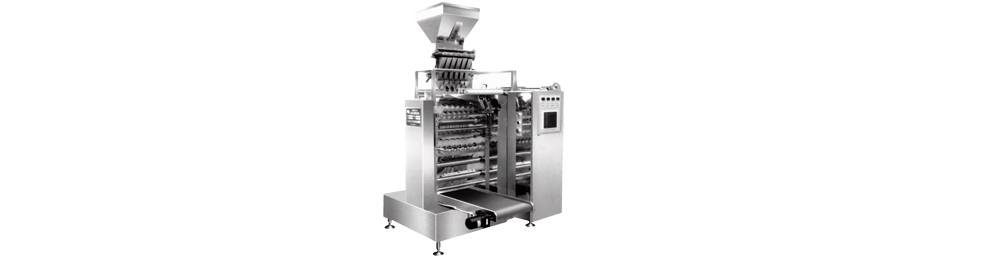

DXDK900四邊封條袋包裝機
DXDK900 FOUR EDGES SEALING AND LARGE NUMBER OFF BAG PACKING MACHINE
 特點
四邊封口，同時進行多條袋包裝，包裝效率高。
PLC控制，自動化程度高。
無級變頻調速，性能可靠，操作方便，可選配伺服控制。
光電踉蹤、浮動對標，保證條袋包裝雙面圖案完整，位置準確。
自動真空填充上料（適用千顆料物料）。
自動打批號、壓縱橫撕裂線。
可匹配自動裝盒聯線。- Features
Sealing four edges of bag simultaneously packing many bands of bags having high packing speed.
Controlled by PLC having high automatization.
The stepless frequency conversion variable speeds having reliable performances easy operati on.
It is equiped with photoelectric tracking device and floating alignment mark to ensure a complete pattern and precise position on both faces of the package of the band bags.
Automatically vacuum filling feeding(Applicable for pellets).
Automatically printing serial numbers and pressing longitudinal and transverse breaking lines.
- 適用范圍
醫藥、食品、化妝品等行業對顆粒 片劑、粘稠半粘稠物料的包裝。
- Application
Applicable for packing pellets tablets sticky and semi -sticky materials in pharmaceutical food process-ing and cosmetic industries.
- 技術參數 Specifications
| 沖裁次數Cutting frequency |
550次/分(times/Min.) |
| 包裝效率Packing speed(bags/min) |
400袋/分(bags/ Min.) |
| 包裝材料Packing material |
塑鋁塑復合膜
Compound film made of plastic andaluminium and plastic
紙塑復合膜
Paper plastic composite film |
| 包裝劑量 Packing dose |
顆粒2~20克/袋Cranulation 2~20g/bag.
液體5~50ml/袋Liquid 5~50ml/bag
片劑、膠囊：多片（粒）tablets capsules: many pieces(pills) |
| 制袋長度Bag sizes(L) |
80-120mm |
| 制袋寬度Bag sizes(W) |
40~150mm |
| 電源總功率 Installed power |
6kW |
| 電壓 Voltage |
380V/50Hz |
| 外形尺寸（長×寬×高）S ize (L×W×H)? |
1500×1540×2200 mm |
| 重量 Weight |
1200kg |
|
